  1. Home
  2. P DIM PIN 20 320 ° 2 W/2700 K G4
Tungsram/GE have ceased trading so if an item is showing out of stock from this manufacturer we will endeavour to offer an alternative. Many thanks for your understanding

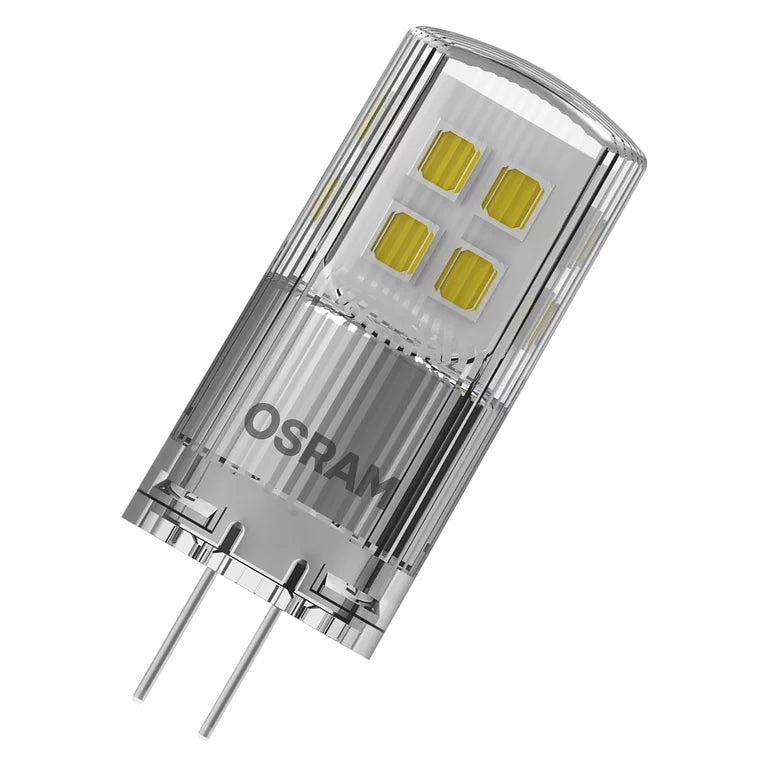

P DIM PIN 20 320 ° 2 W/2700 K G4

Product Description
£7.65
Maximum quantity available reached.
Sku: m11l2-82d-os
Vendor: LEDVANCE

Stock Due: Normally Within 2-7 Days

Description

Product benefits
  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Very long lifetime of up to 25,000 h
  • Four year guarantee

  • TECHNICAL DATA

    ELECTRICAL DATA

    Nominal wattage 2 W
    Construction wattage 2.00 W
    Nominal voltage 12 V
    Claimed equiv. conventional lamp power 20 W
    Nominal current 190 mA
    Type of current AC/DC
    Inrush current 2.5 A
    Max. lamp no. on circuit break. 10 A (B) 47
    Max. lamp no. on circuit break. 16 A (B) 76
    Total harmonic distortion < 120 %
    Power factor λ > 0.50

    PHOTOMETRICAL DATA

    Luminous flux 200 lm
    Nominal useful luminous flux 90° 200 lm
    Luminous efficacy 100 lm/W
    Lumen main.fact.at end of nom.life time 0.70
    Light color (designation) Warm White
    Color temperature 2700 K
    Color rendering index Ra ≥80
    Light color 827
    Standard deviation of color matching ≤6 sdcm
    Rated LLMF at 6,000 h 0.80
    Flickering metric (Pst LM) 1.0
    Stroboscope effect metric (SVM) 0.4

    LIGHT TECHNICAL DATA

    Beam angle 320 °
    Warm-up time (60 %) ‹ 0.50 s
    Starting time < 0.5 s
    Rated beam angle (half peak value) 320.00 °

    DIMENSIONS & WEIGHT

    Overall length 40.00 mm
    Diameter 15.00 mm
    Maximum diameter 15 mm
    Product weight 5.5 g

    TEMPERATURES & OPERATING CONDITIONS

    Ambient temperature range -20…+40 °C
    Maximum temperature at tc test point 90 °C

    LIFESPAN

    Lifespan 25000 h
    Number of switching cycles 100000
    Lumen maintenance at end of serv 0.70
    Rated lamp survival factor at 6,000 ≥ 0.90

    ADDITIONAL PRODUCT DATA

    Base (standard designation) G4
    Mercury content 0.0 mg
    Design / version Clear

    CAPABILITIES

    Dimmable Yes

    CERTIFICATES & STANDARDS

    Energy efficiency class F 1)
    Energy consumption 2.00 kWh/1000h
    Type of protection IP20
    Standards CE, EAC
    Photobiological safety group acc. to EN62778 RG1

    1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

    COUNTRY-SPECIFIC CATEGORIZATIONS

    Order reference LEDPPIN20D CL 2

    LOGISTICAL DATA

    Temperature range at storage -20…+80 °C

    ENERGY LABELLING REGULATION DATA ACC EU 2019/2015

    Lighting technology used LED
    Non-directional or directional NDLS
    Mains or non-mains NMLS
    Light source cap-type (or other electric interface) G4
    Connected light source (CLS) No
    Color-tuneable light source No
    Envelope No
    High luminance light source No
    Anti-glare shield No
    Correlated colour temperature type SINGLE_VALUE
    Standby power 0.00
    Claim of equivalent power Yes
    Length 40.00 mm
    Height 15.00 mm
    Width 15.00 mm
    Chromaticity coordinate x 0.458
    Chromaticity coordinate y 0.410
    Beam angle correspondence SPHERE_360
    Survival factor 0.90
    LED light source replaces a fluorescent light source No
    EPREL ID 522864
    Model number AC32099
